How To Make Crc Cards : Crc Cards Tutorial Jun Azene Ppt Download / You can edit this template on creately's visual workspace to get started quickly.. Crc cards (class diagram (uml)) use creately's easy online diagram editor to edit this diagram, collaborate with others and export results to multiple image formats. Teaches you how to draw crc card diagram. There are four errors on this crc card. You can create as many as crc card on a diagram by repeating this step. With our crc card maker, you can easily draw tables with custom sizes for columns and rows, and apply whatever color you want.

Crc cards can be created interactively with a handful of analysts who can work together to identify the class in the problem domain presented by the business. While posa cards contain more details than beck and cunningham's, they still only provide a gentle introduction. The context is the creation of a simple rss reader. A crc card making software making a crc card is not difficult if you choose an effective software. This video shows an example crc card analysis.

Free Class Responsibility Collaborator Crc Card Templates from www.edrawsoft.com

Click crc card on the diagram toolbar and then click on the diagram to create a crc card. A class responsibility collaborator (crc) model (beck & cunningham 1989; Then the register, crc_low, is loaded with the new data byte. All properties in a crc card must be edited inline. Do not base it on some drawing or some memory you have of what it does or whatever. We were unable to load the diagram. Crc cards can be created interactively with a handful of analysts who can work together to identify the class in the problem domain presented by the business. To create a crc card, you can begin by writing out a scenario which identifies the major actors and actions which the actors do.

The header/buttons are hidden when printing!

Crc cards (class diagram (uml)) use creately's easy online diagram editor to edit this diagram, collaborate with others and export results to multiple image formats. Enter the diagram name and description. You can edit this template on creately's visual workspace to get started quickly. Creating crc card diagram select diagram > new from the application toolbar. Crc cards when writing class responsibilities for crc cards use plain english and be very specific. In this chapter, you will learn crc card diagram, and see how to draw it. This process repeats for all data bytes. The location field enables you to select a model to store the diagram. Each card lists the class's name, attributes and methods (its responsibilities), and class associations (collaborations). Make sure everything is in there. To create a crc card, you can begin by writing out a scenario which identifies the major actors and actions which the actors do. In the posa book, crc cards introduced the roles played by elements in a pattern. A class responsibility collaborator (crc) model (beck & cunningham 1989;

A crc card making software making a crc card is not difficult if you choose an effective software. You can create as many as crc card on a diagram by repeating this step. The following links can be used to go directly to the crc cards for the various classes: Click to download i know that it can be frustrating to have to make crc cards by yourself, so i have made one that you can actually put data in. Each card lists the class's name, attributes and methods (its responsibilities), and class associations (collaborations).

A Crc Card For A Book Class Download Scientific Diagram from www.researchgate.net

Ambler 1995) is a collection of standard index cards that have been divided into three sections, as depicted in figure 1.a class represents a collection of similar objects, a responsibility is something that a class knows or does, and a collaborator is another class that a class interacts with to fulfill. Click to download i know that it can be frustrating to have to make crc cards by yourself, so i have made one that you can actually put data in. Click crc card on the diagram toolbar and then click on the diagram to create a crc card. Crc card sessions can also help create new domain classes or generalize existing ones to make them more reusable across applications; The header/buttons are hidden when printing! With our crc card maker, you can easily draw tables with custom sizes for columns and rows, and apply whatever color you want. Class responsibility collaborator cards a crc card (beck & cunningham, 1989; It builds upon an example we have been studying in cs222 a.

Do not base it on some drawing or some memory you have of what it does or whatever.

Each card lists the class's name, attributes and methods (its responsibilities), and class associations (collaborations). A crc card making software making a crc card is not difficult if you choose an effective software. How to create crc card diagram; In this chapter, you will learn crc card diagram, and see how to draw it. I hope this helps anyone who is struggling with uml! The following links can be used to go directly to the crc cards for the various classes: It builds upon an example we have been studying in cs222 a. The next step is that the content from crc_high is shifted into crc_buff and the content from crc_low is shifted into the register, crc_high. To edit, double click on the desired field, update its value, and click on the diagram. Only write out actions and actors specific to that particular scenario. All properties in a crc card must be edited inline. A crc card is a physical card representing a single class. Class responsibility collaborator cards a crc card (beck & cunningham, 1989;

All properties in a crc card must be edited inline. Crc cards when writing class responsibilities for crc cards use plain english and be very specific. The context is the creation of a simple rss reader. Crc card sessions can also help create new domain classes or generalize existing ones to make them more reusable across applications; Updated on september 13, 2018 doc navigation ← 14.

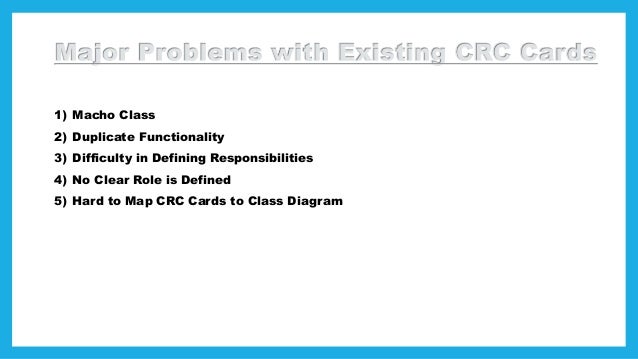

Objectoriented Analysis Using Crc Cards And Scenarios To from slidetodoc.com

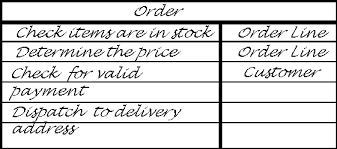

Updated on september 13, 2018 doc navigation ← 14. The header/buttons are hidden when printing! Crc cards when writing class responsibilities for crc cards use plain english and be very specific. Ambler, 1995) is a standard index card that has been divided into three sections, as shown below in. Using crc cards to assign responsibiities to various classes for the tasks required by the various use cases leads to the creation of the following cards. Teaches you how to draw crc card diagram. Here is an example of wrong and good crc card. Video ini menjelaskan tentang bagaimana cara membuat crc (class responsibilities colaboration) card merupakan salah satu diagram yang digunakan untuk menggambarkan class.

You can create as many as crc card on a diagram by repeating this step.

Using crc cards to assign responsibiities to various classes for the tasks required by the various use cases leads to the creation of the following cards. Do not base it on some drawing or some memory you have of what it does or whatever. Make sure everything is in there. Write the cards based on the genuine code. When entering a crc card session, it is important to know what domain classes and frameworks exist to help model the problem; Each card lists the class's name, attributes and methods (its responsibilities), and class associations (collaborations). You can create as many as crc card on a diagram by repeating this step. We were unable to load the diagram. All properties in a crc card must be edited inline. Make full use of the shapes and bright colors to design an intuitive crc card template. Only write out actions and actors specific to that particular scenario. You can create as many as crc card on a diagram by repeating this step. Crc cards when writing class responsibilities for crc cards use plain english and be very specific.
